Description china Battery flowmeter electromagnetic flow meter
Electromagnetic flow meter china/battery flowmeter sensor and signal converter matching integrated ZFH series, signal converter with IP67 protection requirements. ZFG electromagnetic flowmeter is mainly used to measure a size All kinds of acid, alkali, salt solution, pulp, mud, such as electrical conductivity of liquid, or the volume flow of liquid-solid two-phase medium. In the chemical industry, mining and metallurgy, water supply and drainage, sewage treatment, food, papermaking, sugar-making, port dredging departments should be widely To use. This flow meter and display, recording instrument, integrator or regulator, used to test the flow, integrating, adjusting and control.
| Nominal Diameter (mm) (Special specifications can be customized) | pipeline tetrafluoroethylene lining:DN10~DN2600 |
| Pipeline rubber lining:DN40~DN2600 |
| Flow direction: | positive and negative, the net flow |
| Turndown ratio: | 1500:1 |
| Repeatability error | ± 0.1% of measured value : |
| Accuracy: | Pipeline:0.5,1.0 |
| Measured medium temperature: | ordinary rubber lining::-20~+60℃ |
| High-temperature rubber lining: -20~+90℃ |
| PTFE lining:-30~+100℃ |
| High temperature tetrafluoroethylene lining:::-20~+180℃ |
| Rated working pressure: (High voltage can be customized) | DN6-DN80:≤2.5MPa |
| DN100-DN250:≤1.6MPa |
| DN300-DN2600:≤1.0MPa |
| Flow rate range: | 0.1-15m/s |

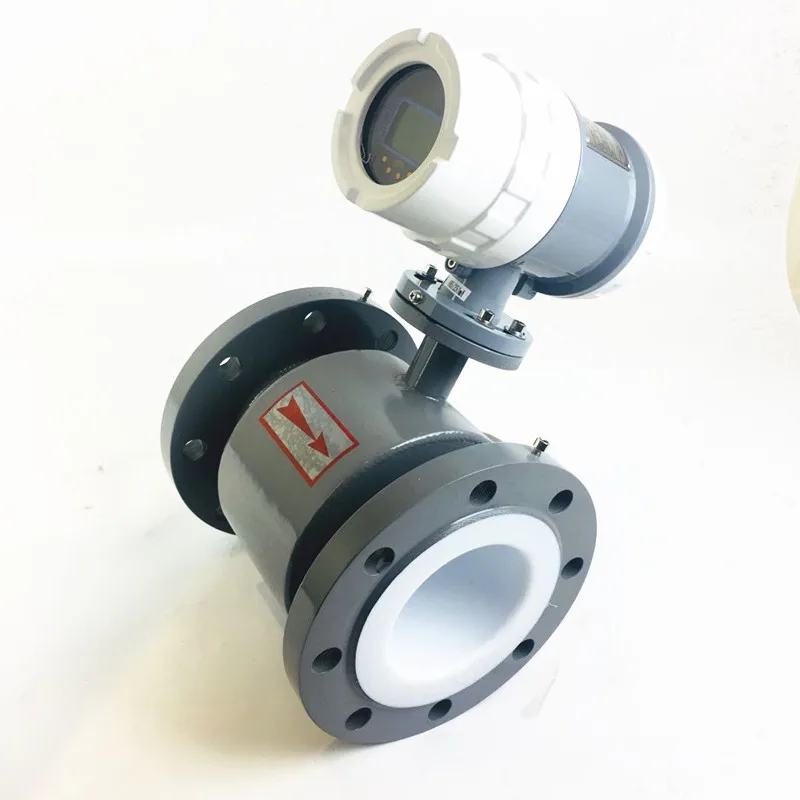

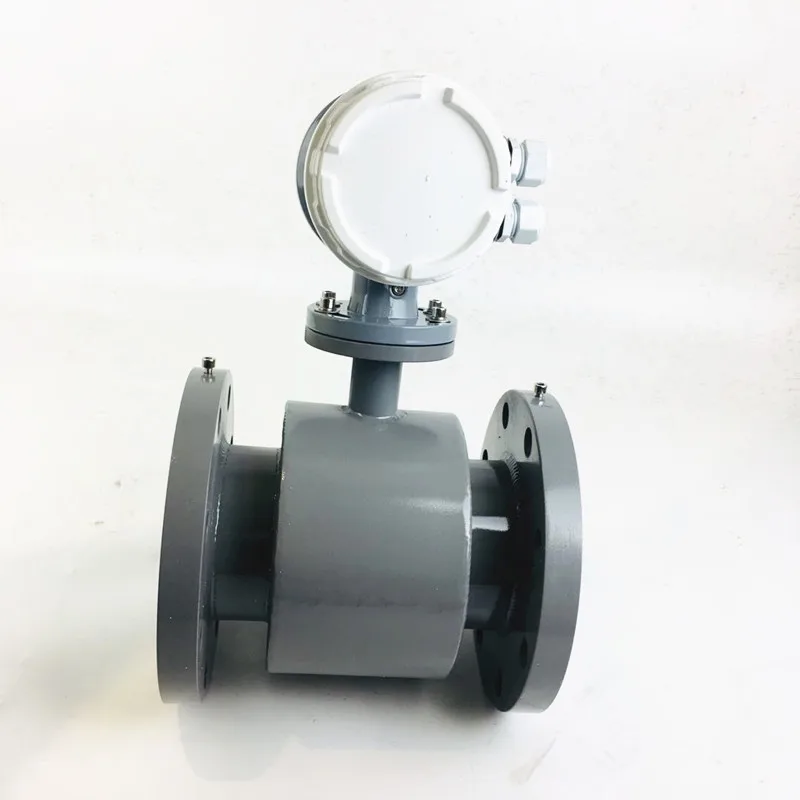

Detailed Images china Battery flowmeter electromagnetic flow meter
Features china Battery flowmeter electromagnetic flow meter
Electromagnetic flow meter china/battery flowmeter
1. The sensor adopts overall welding structure, good sealing.
2. Record the measurement from the measured media pressure, temperature, density, viscosity and other physical parameters.
3. With functions of conductivity measurement, can distinguish whether the sensor controller
4. Using 16-bit embedded microcontroller processor, a fast calculation speed, high precision
5. With two-way flow measurement function, can show positive and reverse flow, percentage, velocity of flow
6. With two-way flow measurement function, can show positive and reverse flow, percentage, velocity of flow
7. Digital content processing, strong anti-interference ability, reliable measurement, high precision
8. Low EMI switch power supply for power supply voltage change fan at large, the EMC performance is good
9. Since the diagnosis information and troubleshooting.
10. Can provide explosion-proof type
Applications china Battery flowmeter electromagnetic flow meter
Electromagnetic flow meter china/battery flowmeter is mainly used to measure a size All kinds of acid, alkali, salt solution, pulp, mud, such as electrical conductivity of liquid, or the volume flow of liquid-solid two-phase medium. In the chemical industry, mining and metallurgy, water supply and drainage, sewage treatment, food, papermaking, sugar-making, port dredging departments.
Selection china Battery flowmeter electromagnetic flow meter
Electromagnetic flow meter china/battery flowmeter
1. Please advise us what's your medium?
2. Please advise us what's nominal diameter do you require?
