MF5619 1.5%FS Gas Flow Meter With Detachable Display

  • 1
  • 2

Brand Name : Yunyi

Model Number : MF5619

Certification : CE RoHS

Place of Origin : China

MOQ : 1set

Price : USD365.00 ~ USD495.00/set

Payment Terms : L/C, T/T, Western Union, MoneyGram PayPal

Supply Ability : 500sets/month

Delivery Time : 5 ~ 8 working days after payment

Packaging Details : Polywood box packing

Product Name : Natural Mass Gas Digital Flow Meter, High Quality Air Gas Flow Meter

Accuracy : ±(1.5+0.5FS)%

Max Pressure : 1.0 Mpa

Repeatability : ±0.5%

Turn-down Ratio : 30:1

Operating Temp. : -10 ~ 55℃

Humidity : <95% RH (No Icing or Condensation)

Power Supply : 12 ~ 24V DC 50mA

Output : 4 ~ 20mA; RS485; Pulse

Calibration : Air @ 20℃, 101.325 kPa

Contact Now

Natural Mass Gas Digital Flow Meter, Flow Range 600SLPM Air Gas Flow Meter

Description

The MF5600 Series Mass Flow Meters are specially designed for applications where the display is often required to be placed separated away from the flow channel or meters body, such as the oxgen metering system in a hospital. These meters are opted with the standard industrial user interfaces (RS485 and 4~20mA), and user defined alarm functions for better monitoring or control over the network. The off-the-shelf products (MF5612 and MF5619) are for gas flow measurement of 0 ~ 300 SLPM and 0 ~ 800 SLPM respectively.

Detailed Images

MF5619 1.5%FS Gas Flow Meter With Detachable DisplayMF5619 1.5%FS Gas Flow Meter With Detachable Display

Specification

Parameter MF5612 MF5619 Unit
DN 12 19 mm
Max. Flowrate 200, 300 600, 800 SLPM
Min. Flowrate 0.3 0.8 SLPM
Turn-down Ratio 30:1
Accuracy ±(1.5+0.5FS) %
Repeatability ±0.5 %
Max. Pressure 1.0 Mpa
Operating Temp. -10 ~ 55 ℃
Humidity <95% RH (No Icing or Condensation)
Power Supply 12 ~ 24V DC 50mA
Output 4 ~ 20mA; RS485; Pulse
Mechanical Connection NPT 1/2 NPT 3/4
Calibration Air @ 20℃, 101.325 kPa

Notes: the above parameters are applicable at 20℃, 101.325kPa

Mechanical Dimensions

MF5619 1.5%FS Gas Flow Meter With Detachable Display

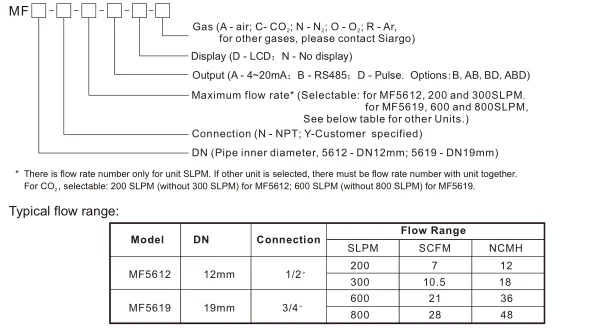

Product Selection

MF5619 1.5%FS Gas Flow Meter With Detachable Display

Features

! Detachable display that can be placed away from the flow channel via a specially designed cable

! Standard 4 ~ 20 mA or RS485 for remote data communication

! Hygenic safe enclosure stainless steel body ready for oxygen metering

! Extended rangeability for accurate flow monitoring and control

! Intrinsic safe enclosure

Accessories For MF5600

MF5619 1.5%FS Gas Flow Meter With Detachable Display
