China Supplier Nitrogen/Oxygen gas air flow meter 0 ~ 200SLPM
Description
MF5700 Series Mass Flow Meters feature cost effective ultra low power operating on 4 AA batteries. The portable design has excellent exchangeable mechanical adapters, easy data accessible and user programmable capabilities. The internal data storage can also help for many industrial on-site applications. The meters can be customized for various general purpose flow applications.
Specification
| China Supplier Nitrogen/Oxygen gas air flow meter |
| Parameter | MF5706 | MF5712 | Unit |
| Flow Range | 0~10, 25 | 0~200 | SLPM |
| Turn-down ratio | 30:1 |
| Accuracy | ±(2.0+0.5FS) | % |
| Repeat ability | 0.5 | % |
| Response Time | ≤2 | sec |
| Power Supply | 4 AA Batteries (LR6) / 6~15 Vdc (with 220 Vac Adaptor) |
| Output | RS 485 (Optional) |
| Display | LCD |
| Display Units | Instant flow rate: SLPM; Flow accumulation: NCM |
| Instant Flow Rate Resolution | 0.01 | SLPM |
| Flow Accumulation Resolution | 0.001 | NCM |
| Continuous Working Time | >60 days (with batteries) |
| Max. Pressure | ≤0.8 | Mpa |
| Working Temperature | -10 ~ +55 | ℃ |
| Storage Temperature | -20 ~ +65 | ℃ |
| Humidity | <95% RH (No Icing or Condensation) |
| Keyboard | 3 keys |
| User Interface | mini USB |
| Calibration | Air @ 20C, 101.325 Kpa |
| DN | 6 | 12 | mm |
| Mechanical Connection | NPT 1/4 | NPT 1/2 | |
| Weight | 350 | g |
Note: the above parameters are applicable at 20℃ and 101.325kPa.
Features
! Ultra low power by batteries or optional external AC adaptor
! Potable design with rotatable meter head and easy exchangeable mechanical adaptors
! Customizable flow range with over 30:1 turn-down
! RS485 Modbus protocol ready for networking
! User programmable range alarm for safety and other monitoring/control functionality
! Internal data storage for additional data safety
! Hygienic and oxygen safe copper body for various fluids

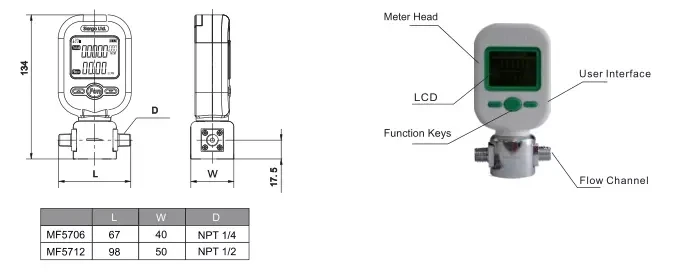

Detailed Images
Applications
Mechanics Food Tobacco Chemistry Beverage Glass Agriculture Research Pharmacetics Instrumentation
