Description Diffused silicon air digital oil pressure Transducer sensor for 4-20ma
YD31316 series diffused silicon pressure transmitter. Our company introduces foreign technology and equipment to produce transmitters. The key raw materials, components and parts are all derived from imported diffused silicon and ceramic pressure sensors as sensitive components. The integrated module is adopted. Fine temperature drift, zero point, and nonlinear compensation can realize accurate measurement and transmission of pressure changes in liquid, gas, steam and other media.
The product is small in size, suitable for small space installation, direct installation in the process, good temperature characteristics, and high comprehensive accuracy. The whole machine has been rigorously assembled and tested. The product has the characteristics of design principles, varieties, and easy installation and use. Since the appearance of this model is fully integrated with the current domestic popularity, in order to adapt to the continuous improvement and development of domestic automation level, this series of products are not only compact in design, but also introduces intelligent functions with HART fieldbus protocol.

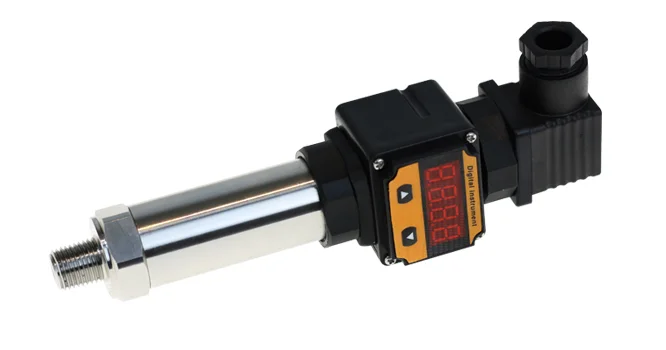

Detailed Images Diffused silicon air digital oil pressure Transducer sensor for 4-20ma
Specification Diffused silicon air digital oil pressure Transducer sensor for 4-20ma
Range: -0.1 ~ 100 (MPa)
Comprehensive Accuracy:0 .1% 0.25% FS, 0.5% FS, 1.0% FS
Output signal: 4 ~ 20mA (two wire),
Site display: LED three half 0000 - 1999
Supply voltage: 24DCV (9 ~ 36DCV)
Medium temperature: -20 ~ 85 ~ 150 ℃
Ambient temperature: room temperature (-20 ~ 85 ℃)
Load Resistance: Current Output: Maximum 800Ω; Voltage output: more than 50KΩ
Insulation resistance: more than 2000MΩ (100VDC)
Sealing Rating: IP65
Long-term stability: 0.1% FS / Year
Vibration: Mechanical vibration frequency within 20Hz ~ 1000Hz, output changes less than 0.1% FS
Electrical connection: Hirschmann connector
Threaded connection: M20 × 1.5, etc., other threads can be designed according to customer requirements
Dimensions: M20 × Φ26.5 × 175
Dimension Diffused silicon air digital oil pressure Transducer sensor for 4-20ma
Features Diffused silicon air digital oil pressure Transducer sensor for 4-20ma
DigitalASIC, accuracy and stability
Drift affect small
Excellent long-term stability
Excellent anti-jamming capability
Overvoltage overcurrent protection, reverse polarity protection
Excellent selection of imported sensors core
