Gas Back SS316L Stainless Steel Pressure Regulator 3000psi

Name: Gas Back SS316L Stainless Steel Pressure Regulator 3000psi
Brand: yunyi
Price: 159 USD

Best Gas Back SS316L Stainless Steel Pressure Regulator 3000psi wholesale

Brand Name : yunyi

Model Number : YR31 Series

Certification : ce

Place of Origin : china

MOQ : 1

Price : $159pcs

Payment Terms : L/C, D/P, T/T, Western Union

Delivery Time : 7days

name : High Quality gas back pressure valve regulator for industrial field

Material : stainless steel

input Pressure : 3000psi or 6000psi

Output pressure : 0-100psi, 0-200psi, 0-300psi, 0-800psi

Cv : (Cv)0.025 0.06, 0.08

Contact Now

Product Description

Description of High pressure gas pressure regulator

High pressure gas pressure regulator, single stage diaphragm type pressure reducing structure, stable output pressure. This pressure regulator is a universal pressure reducing valve with a wide range of uses, which can be used in semiconductors, laboratories, chemical analysis, instrumentation, etc. Pressure regulator an economical and ideal choice for regulating gas or liquid pressure. 316L stainless steel body, stainless steel valve stem and adjustment handle avoid environmental corrosion. The surface finish inside the body is high. You can choose a variety of different valve seat materials, a variety of inner diameters and a variety of pressure control ranges, and the stainless steel diaphragm provides reliability in pressure and flow control. This high pressure regulator has excellent accuracy, sensitivity and stable pressure set point.

Specification High Quality gas back pressure valve regulator for industrial field

item	High pressure gas pressure regulator
standard input pressure	1500psi, 3000psi, 6000psi
customize input pressure	10000psi, 15000psi
output pressure	0-50psi, 150psi, 300psi, 500psi, 750psi, 1500psi, 3000psi
Application	air, gas, oxygen, Nitrogen, water(need to customize)
Body material	ss316L or Brass
Seal material	PTFE, PCTFE, Viton, Vespel etc
Structure	diaphragm, piston, one stage, dual stage, back
Filter	optional, usually water must need
Cv	0.06, 0.08 standard
Port thread	Standard 1/4NPTF, other can customize
Ports	standard 4 ports, can customize 3 ports, 6 ports

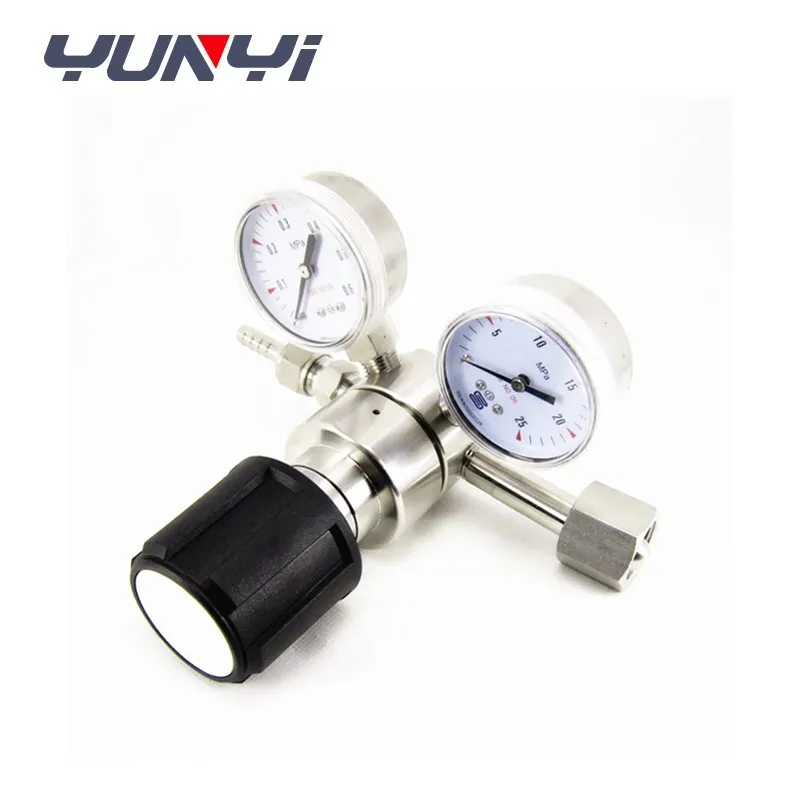

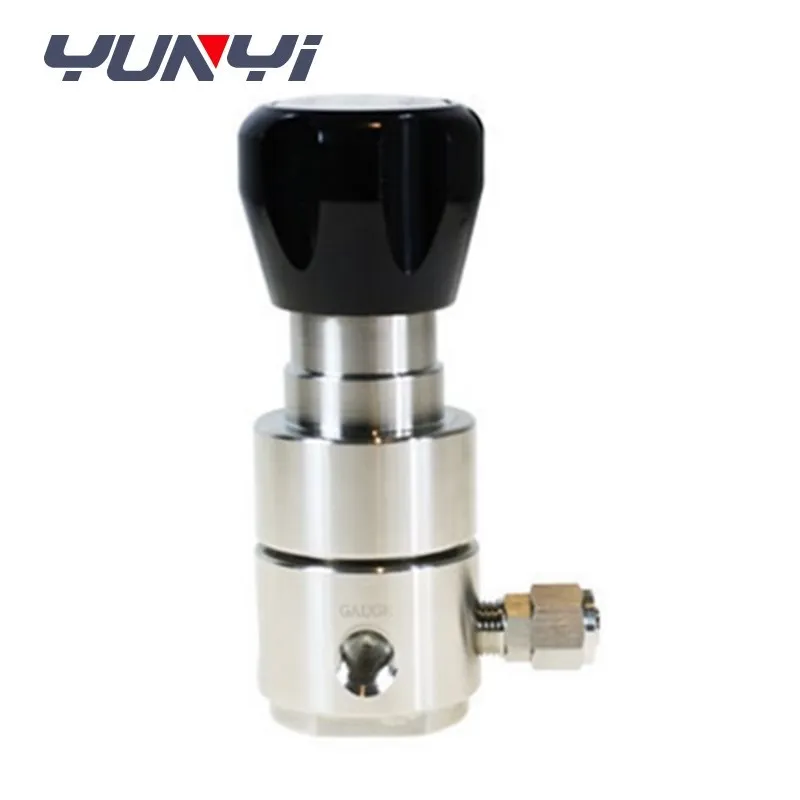

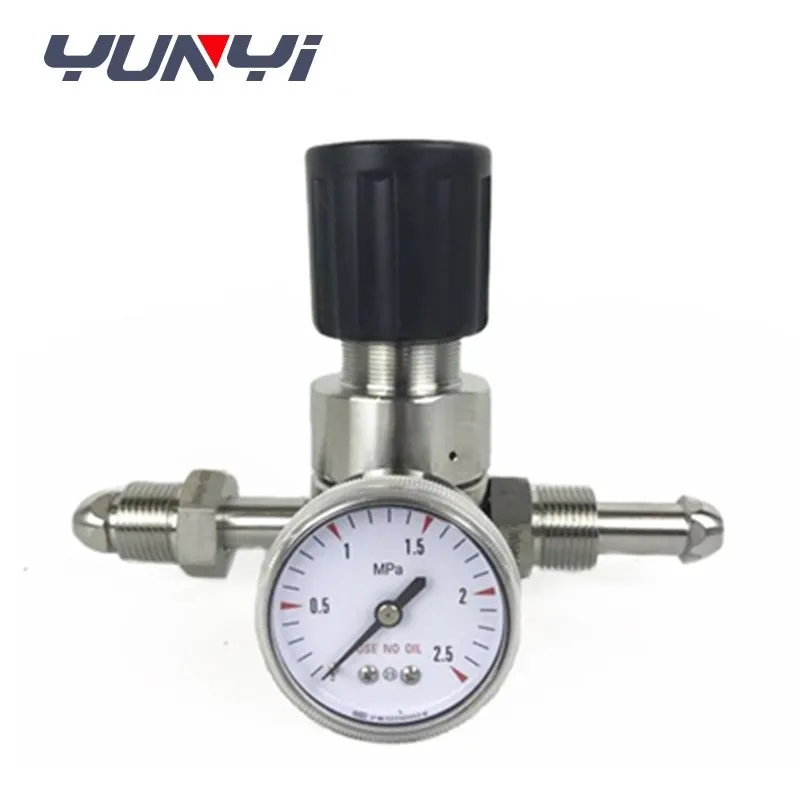

Detailed Image

Gas Back SS316L Stainless Steel Pressure Regulator 3000psi

Features

Structure of HIgh pressure gas pressure regulato

1. Single stage type relief structure
2. Maternal and diaphragm use hard seal form
3. The internal structure easy to purge and with filter
4. Can use panel or wall mounting

Material of HIgh pressure gas pressure regulator

Body: 316L/SS304
Seat: PCTFE, Vespel
Piston: 316L
O-rings: Viton

Application of High Quality gas back pressure valve regulator for industrial field

Gas Analysis Test
Laboratory
Petrochemical industry
Power Plant Equipment
