Description:
2088 type pressure transmitter uses piezoresistive silicon oil filled sensor as the signal measuring element. Signal processing circuit located in the stainless steel housing, can convert sensor signal into standard output signal. All the products through components and semi -finished products test, finished products burn-in screening, are with stable and reliable performance. Have strong anti-interference performance, can working in harsh environment conditions for long term.
Specification:
| Measurement Range | -0.1….0~0.01... ~100MPa |
| Proof pressure | ≤1.5X rated pressure or 110MPa which ever is less |
| Pressure type | Gauge, absolute ,sealed gauge |
| Accuracy | ±0.25%( Typical) ±0.5%( Max.) |
| Long term stability | ±0.2%F.S/year |
| OperatingTemperatureRange | -20℃~80℃ |
| Storage TemperatureRange | -40℃~120℃ |
| Power supply | 15~30VDC |
| Output signal | 4~20mA 0~10/20mA 0/1~5VDC |
| Pressure port | M20×1.5 or customize |
| material | 1Cr18Ni9Ti stainless steel |
| Diaphragm material | 316L |
| O-ring | Fluororubber |
| Electrical housing | Cast aluminium alloy(2088housing) |
| Insulation resistance | 100MΩ,100VDC |
| Protection | IP65 |

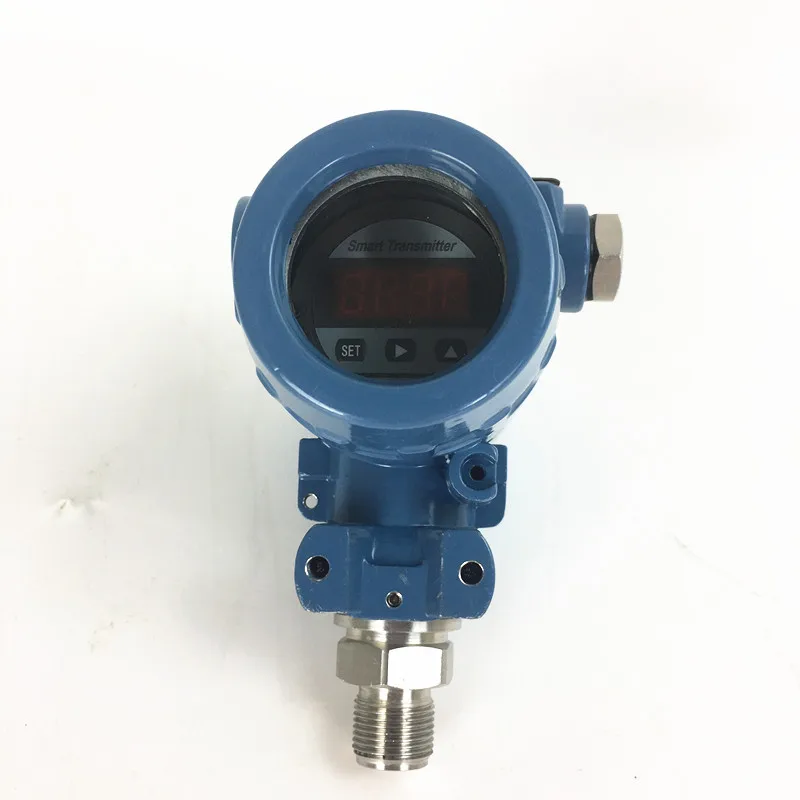

Detailed Images:
Features:
Wide Range, Explosion-Proof Housing:
The transmitter offers a wide measurement range and is housed in an explosion-proof enclosure, ensuring safe operation in hazardous environments.
Multiple Pressure Ports, Adjustable Output Signals:
With various pressure port options, the transmitter can be easily installed and adapted to different systems. It provides adjustable output signals, allowing for flexibility and compatibility with diverse requirements.
Multiple Protection, Strong Anti-Interference:
Equipped with multiple protection features, the transmitter ensures reliable operation and robust resistance to interference, ensuring accurate and stable measurements.
Marking: ExiaIICT6:
The transmitter is marked with ExiaIICT6, certifying its compliance with explosion-proof standards for use in potentially explosive environments.
Selection Guide:
| 2088XX | |
| | Pressure range | -0.1. . .0~0.01...100MPa |
| (0-X)KP Or MPa | X:Measurement range |
| | Code | Power supply |
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Others |
| | Code | Output signal |
| S1 | 4~20mADC | S5 | 0~20mADC |
| S2 | 1~5VDC | S6 | 0~10VDC |
| S3 | 0~5VDC | S7 | 0.5~4.5VDC |
| S4 | 0~10mADC | | |
| | Code | Pressure Port |
| J1 | M20×1.5 male |
| J2 | G1/2 male |
| J3 | G1/4 male |
| J4 | 7/16-20UNF Female |
| J5 | Others(such as 50.4flange) |
| | Code | Electrical connection |
| B1 | Big Din |
| B2 | PG7 PIN |
| B3 | Cable with 1.5 meter |
| B4 | 2088 industry housing |
| B5 | 2088 housing with LED |
| B6 | others |
| | Code | Pressure type |
| G | Gauge |
| A | Absolute pressure |
| S | Sealed pressure |
